Sterling® Digibinder

Description

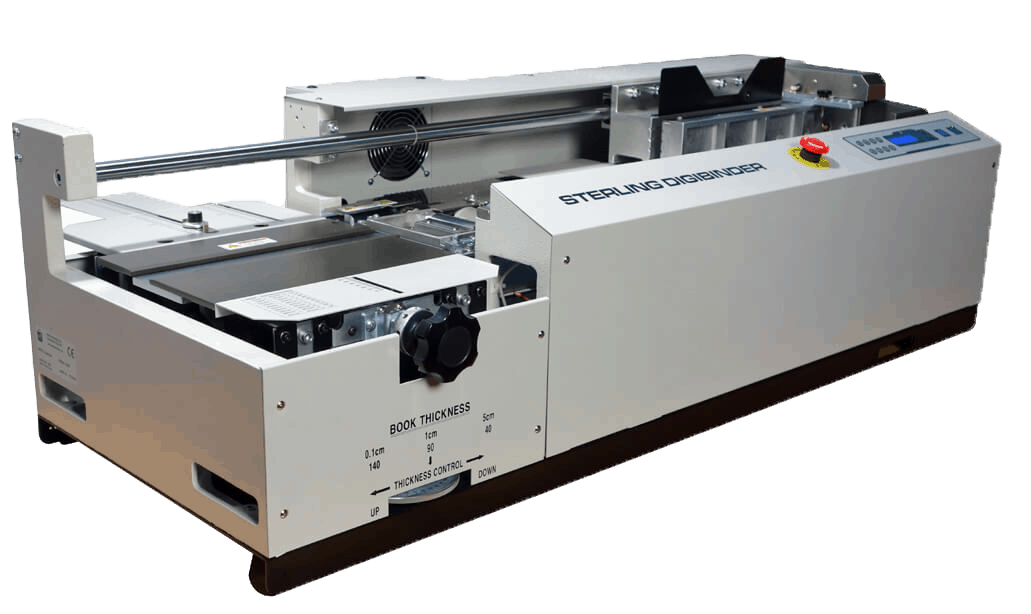

The Sterling® DigiBinder is a fully automated perfect binder. The pneumatic clamp and the nipper adjust automatically. The unique roughing blade roughs and notches the entire backbone of the book. Twin glue applicating rollers and a third metering roller, ensure an even glue application. There is absolutely no set up. Go from thick books to thin books without any adjustments! A silent air compressor is supplied with the machine.

Technical Specifications

• Max Speed: Up to 360 BPH
• Maximum Book Thickness: 2-1/4” / 57 mm
• Minimum Book Thickness: 2 sheets
• Maximum Spine Length: 12.5”/ 32cm
• Maximum Cover Size: 12.5” X 27” / 315×680 mm
• Power: 220 Volts, Single Phase, 10 AMPS
• Weight: 339 LBS./450 Kg
• Dimensions: 54.4” L, 32” W, 17” H
  1382mm L, 813mm W, 432mm H
