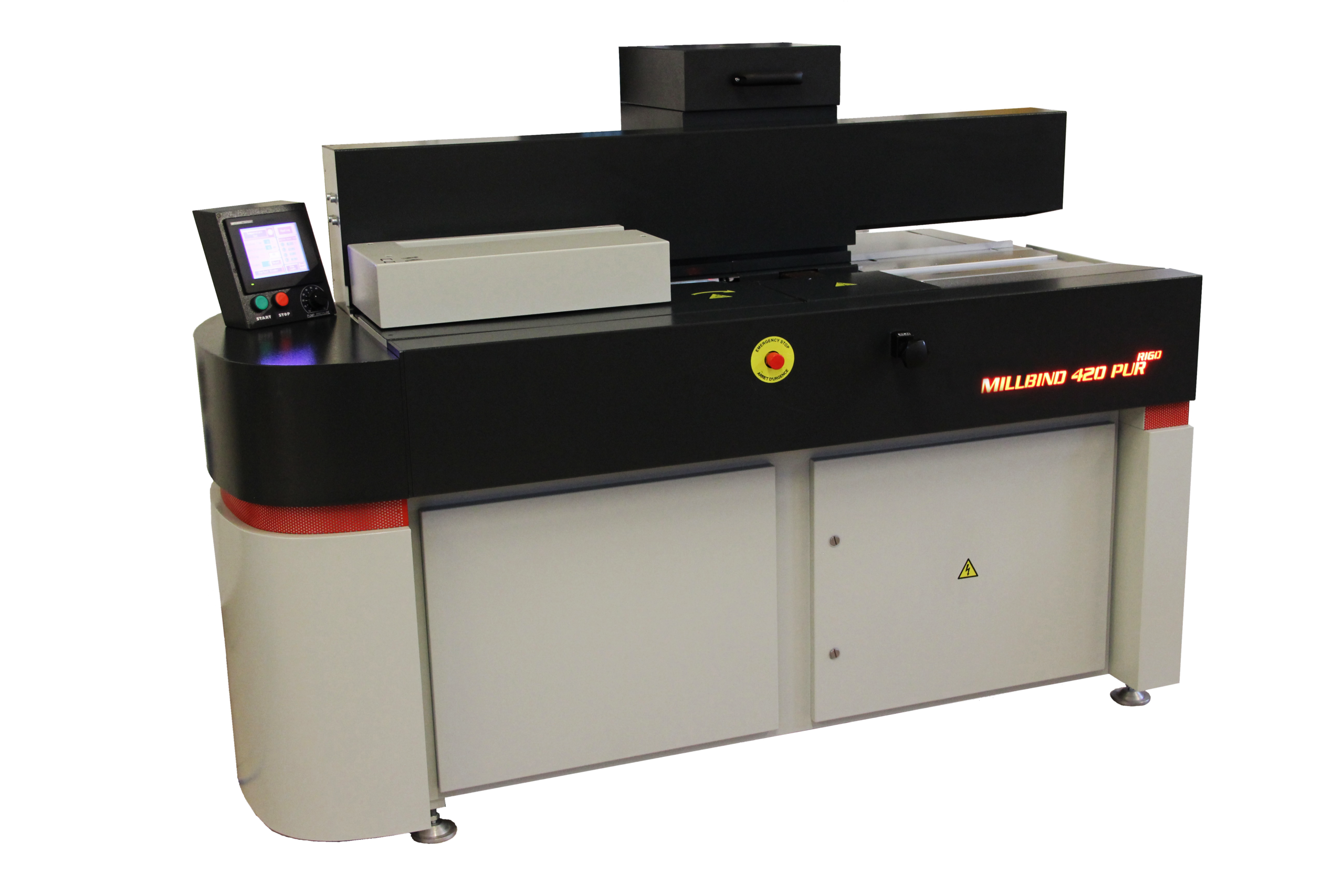

Millbind 420 PUR

Description

The RIGO Millbind 420 PUR is a medium run PUR perfect binder with a low-maintenance closed PUR nozzle glue application system. The Millbind uses a 2kg slug, which is placed into a heated tank that utilizes four heating zones which keeps the glue at the optimum temperature throughout when being applied to the book block. The MILLBIND 420 PUR also has several options such as, automatic carriage start, tape binding unit and remote-control module for remote maintenance. • Unique closed PUR system (PUR spine and side gluing, tank capacity: 3kgs)
• Adjustable glue cut-off from the touch screen
• Adjustable book positioning from the touch screen
• Variable milling depth (0-3mm) and notching
• Large cover holder, with skew adjustment
• Paper dust extractor
• Cover sensor

Technical Specifications

• Book Size: 80mm to 420mm (spine)
• Binding Thickness: 1mm to 50mm
• Milling: 0-3mm adjustable
• Speed: Up to 250 books/hour
• Cover: 80-300gsm
• Power: 230V/50Hz
