Looper

Description

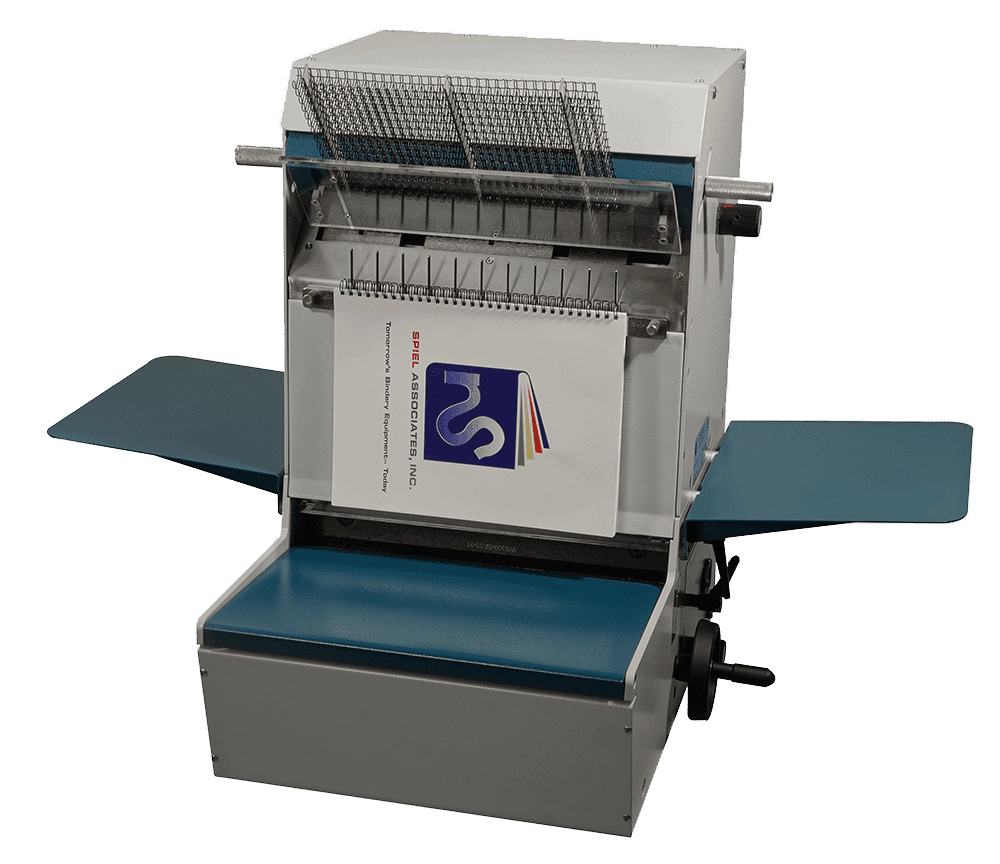

The Sterling® Looper is a table top, semi-automatic double loop wire binder that can attain the speeds of more costly, floor model wire binding machines.

Place a card of cut lengths of wire into the feed tray and it will automatically feed one piece of wire at a time on to the pins for hanging. Hang the book on the wire, then move the book to the closing station to close the wire. 3:1 books can be bound with automatic feeding from the cards of wire. 2:1 books may be bound manually by placing the cut length of wire on the pins.

Bind books from 1/4” up to 1 1/2” in diameter. Speeds of up to 600 books per hour can be attained.

Technical Specifications

• Max Speed: 600 Books Per Hour
• Min Binding Length 7” / 178 mm
• Max Binding Length 12” / 305mm
• Wire Closing 3/16” – 1 1/2” – 14”/356mm Binding Length
  Wire Feeding 3/16” – 9/16”- 12”/305mm Binding Length
• Floor Space 36” X 30” X 25” / 914×762×635mm
• Weight 191 LBS./87KG
• Electrical: 110V/60Hz/4 Amps
